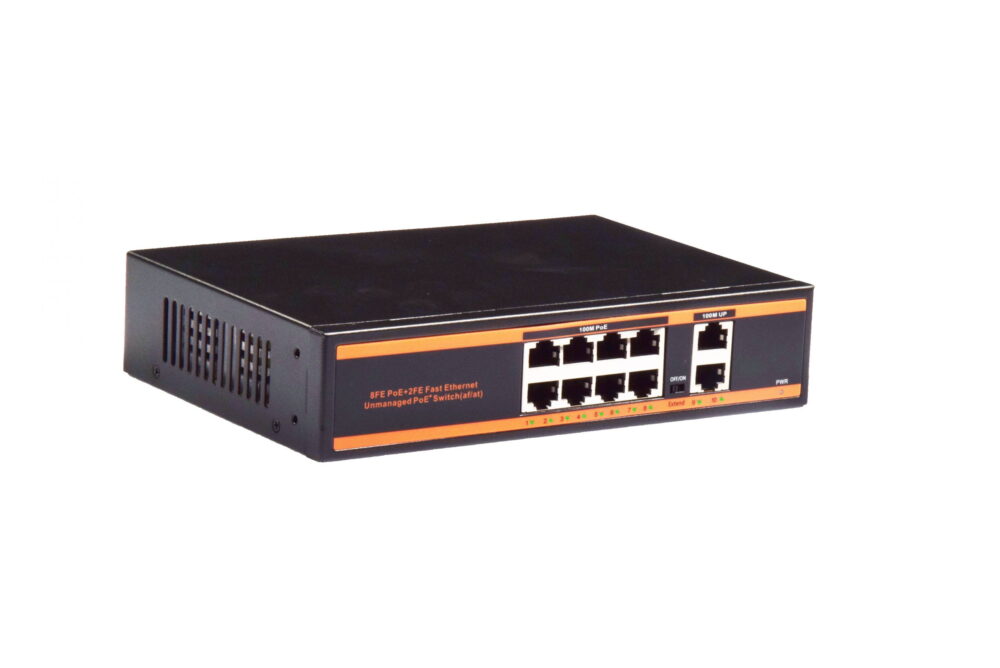

Product 8+2 Port 250m POE Switch (Built-in)
POE Port 1 to 8 support IEEE802.3AF/AT Standard
Output Power 15.4W/30W IEEE802.3af/at
Power Pin Both 1/2+?3/6- and 4/5+7/8-
Whole Power ?120W (52V 2.8A)
POE Protocol IEEE 802.3af/IEEE 802.3at
POE Type End-span
Power Distance ?250m
Network Standard IEEE 802.3? IEEE802.3u?802.3x?802.3af/at
Network Medium 10/100BASE-TX:5 class and above non shielded twisted pair
Data Distance ?250m
Switch Capability 1.6Gbps
Forwarding Mode Store and forward
Forwarding Rate 10BASE-T:14880PPS/port
100BASE-tx:14800pps/port
MAC Address MAC address table 2K
Port Function Power priority mechanism, fast and forward, MAC automatic learning and aging
IEEE802.3X Full-duplex and mode and backpressure for Half-duplex mode
LED Indicator LINK/ACT.100Mbps;POE Status Indicator; Power indicator;Extender
Working Environment Working temperature:-10°– 55°C
Weight 1.2kg
Size 270mm*180mm*44mm(L*W*H)
