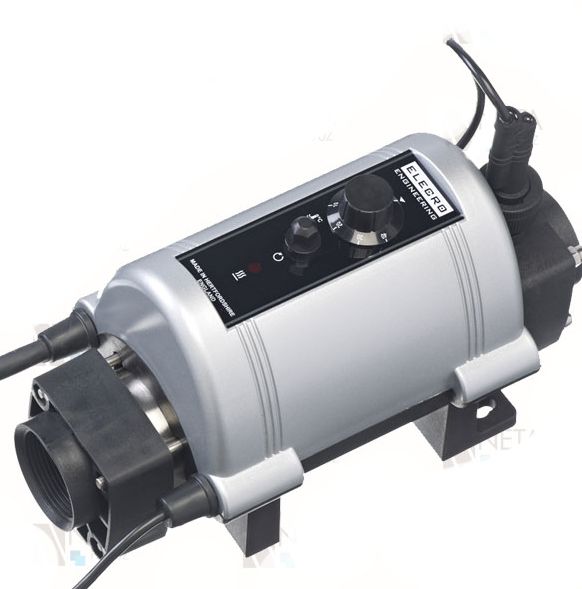

ELECRO ISITICI SPA 4 KW TITANIUM
Kargo Dahil DEĞİLDİR
Kolay Kurulum
Kompakt Tasarım
Titanyum Isıtma Elemanı
AISI 316 Paslanmaz Çelik Akış Tüpü
0-45°C arası analog kontrol termostatı (1°C hassasiyetli)
Termal emniyet koruması
Akış kontrol switchi
- Robust, durable construction
- Easy installation
- Compact design
- Titanium heating element
- 316 Stainless Steel flow tube
- Optional analogue control with 1°C Differential
- Optional ultra-reliable flow switch allows safe operation with 1m³/h
- Optional safety thermal cut-out (60°C manual reset)
Construction
Construction consists of a flow tube which is fitted with Inlet and Outlet mouldings manufactured from specially formulated polymer alloy material.
As standard the Nano spa heater is supplied without any control circuit components, you can then select as many or as few options you would like from the extensive list of available options (below) – allowing complete flexibility and suitability to your requirements.
Options Available:
- Analogue control thermostat 0 – 45°C (1°C Differential)
- Safety thermal cut-out (60°C manual reset)
- Flow switch
- NTC or PTC temperature detection probe (pre-fitted)
- Relay
- Control circuit output cable (for simple integration into existing Spa control panel)
- Power supply cable
| Minimum Flow Requirement | 1m³ (1,000-litres) per hour |
| Maximum Flow Velocity | 17m³ (17,000-litres) per hour |
| Heating Element | Titanium |
| Flow Tube | BS 316 Stainless Steel |
| Optional Control Thermostat |
0ºC > 45ºC (1.0ºC Differential) |
| Optional Safety Thermal cut-out |
60ºC (Manual reset) |
| Optional Flow Switch |
Gold tipped reed switch with Titanium fulcrum pin |
| Wiring | High temperature, silicone sheathed, multi-strand copper conductors |
| Seals | High temperature special formula polymer |
| Working Pressure | 4 bar maximum |
| Water Connections | 1½” BSP female thread |
| Supplied ABS Unions | For 1½” / 50-mm rigid pipe |
Tüm ölçüler mm (All measurements in mm)
| Diğer Özellikler | |||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Stok Kodu
ELECRO MİNİ ISITICI
Sağlam Dayanıklı Yapı
Kolay Kurulum Kompakt Tasarım Titanyum Isıtma Elemanı AISI 316 Paslanmaz Çelik Akış Tüpü 0-45°C arası analog kontrol termostatı (1°C hassasiyetli) Termal emniyet koruması Akış kontrol switchi
Construction Construction consists of a flow tube which is fitted with Inlet and Outlet mouldings manufactured from specially formulated polymer alloy material. As standard the Nano spa heater is supplied without any control circuit components, you can then select as many or as few options you would like from the extensive list of available options (below) – allowing complete flexibility and suitability to your requirements. Options Available:
Tüm ölçüler mm (All measurements in mm)
|
|||||||||||||||||||||||||||||||||||
| 2 | |||||||||||||||||||||||||||||||||||
